circular colorscale
KP
Tue, 05/18/2021 - 01:14 pm
Hi!
Is there is a circular color-scale in igor? I want to plot wind speed against time and color it using wind direction data. I have wind direction data from 0-360 and I want 0 and 360 to be of the same color. Is this possible?
Thanks!
Kanan
I just had a look and I couldn't see one. You could create your own colortable or, you could make a version of your wind direction data where 0-180 is unaltered and 180-360 are converted to 180-0, i.e. 181 becomes 179? Then use this wave for color coding.
May 18, 2021 at 02:17 pm - Permalink
I remember coming up with one for just this purpose.
I'll look around in my collection of Igor experiments tonight.
May 18, 2021 at 02:42 pm - Permalink
I would really appreciate that, thank you!
May 18, 2021 at 04:44 pm - Permalink

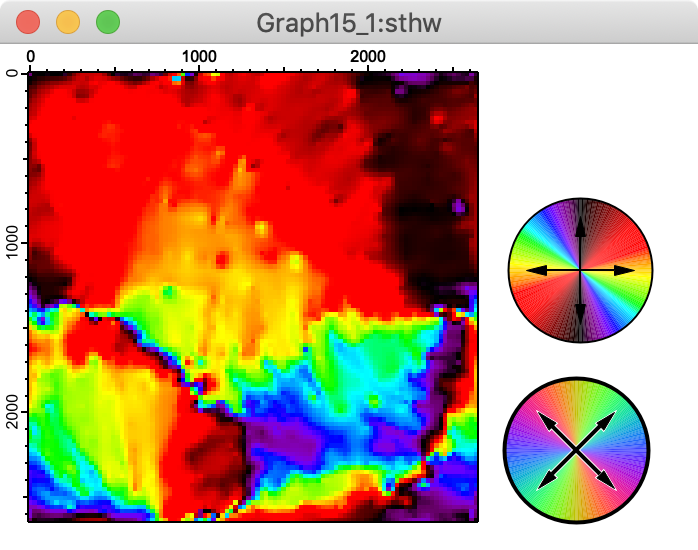

The attached procedure file adds a "Make Angle Color Legend" item to the Graph, Panel, and Layout menus.
It works well with the RainbowCycle color table.
May 18, 2021 at 06:49 pm - Permalink
