Demo Chemical Bonding Curves

Overview

This self-standing demonstration experiment shows the shapes of curves for potential energy and force for seven expressions commonly used in chemical bonding. They include Hooke's law, Lennard-Jones 6-12, ionic (in two forms), Born-Mayer, Mie, Morse, Buckingham. The potential is in a dimensionless form of -U/Uo versus distance as r/ro, where Uo is the potential at equilibrium distance ro. Force is dimensionless by its maximum value Fmax.

Features

A control panel allows you to change the potential expression and vary the key parameters. A ClipIt button allows you to take a snapshot of the curves at a given set of parameters in order to compare to curves at other parameter settings.

Distribution Details

  • Experiments: Demo Chemical Bond Curves.pxp
  • Procedure Files: none
  • XOPS: none
  • Requires Packages: NONE
  • Benefits From: NONE
  • Help Files: none
  • Documentation: internal notebook for the experiment demo

Images:

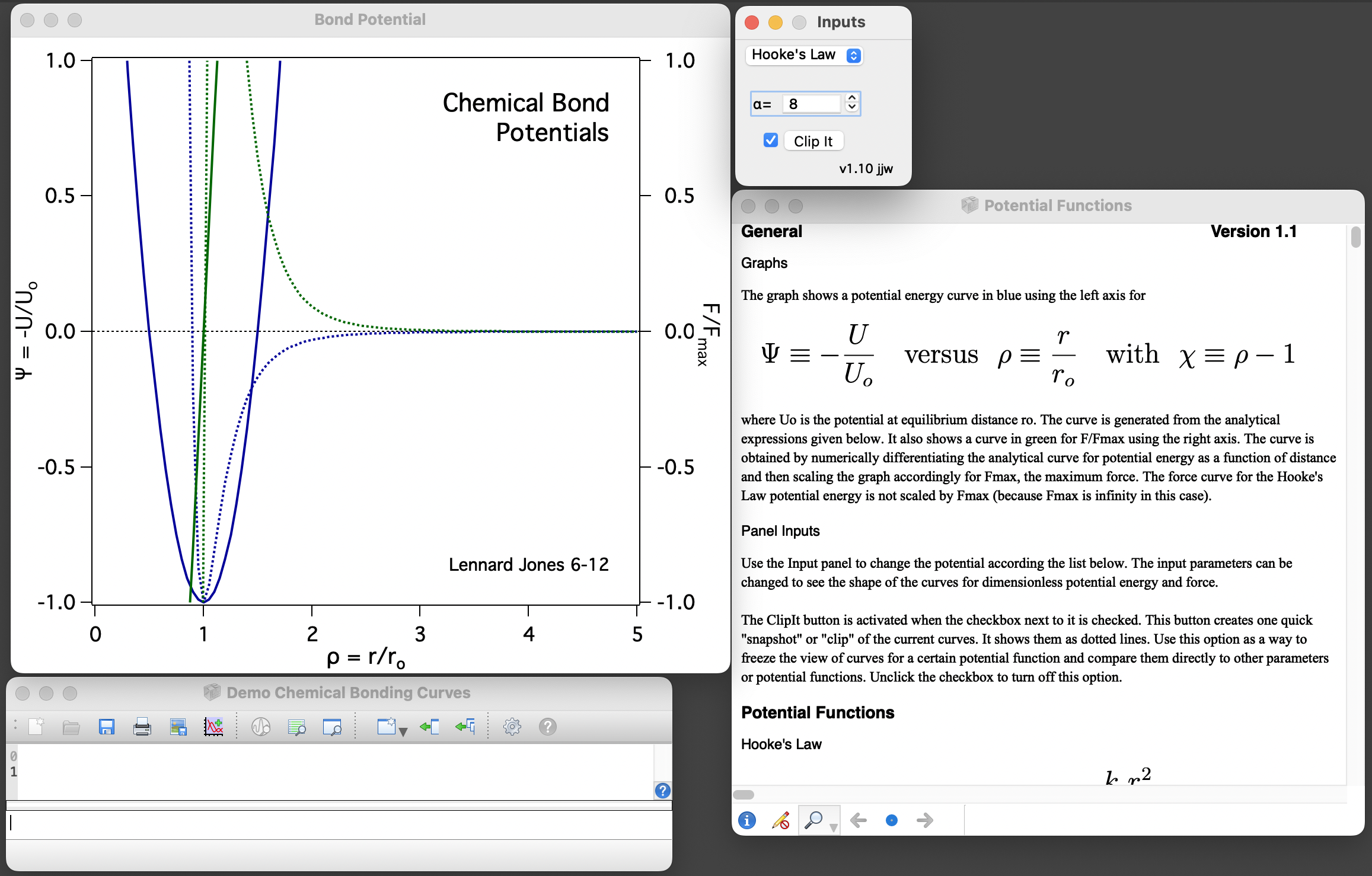

Picture of demonstration package

Project Details

Current Project Release

Release File: Demo Chemical Bonding Curves v1.10.zip
Version: 1.10
Version Date: Sat, 04/01/2023 - 09:30 am
Version Major: 1
Version Patch Level: 10
OS Compatibility: Windows Mac-Intel
Release Notes:

Improvements

  • graph now shows information about clipped curve
  • added a second form of the ionic potential (repulsive is exponential with distance
