why rectangle in the graph and layout has different position?

Share icon

Wed, 08/13/2014 - 12:52 am

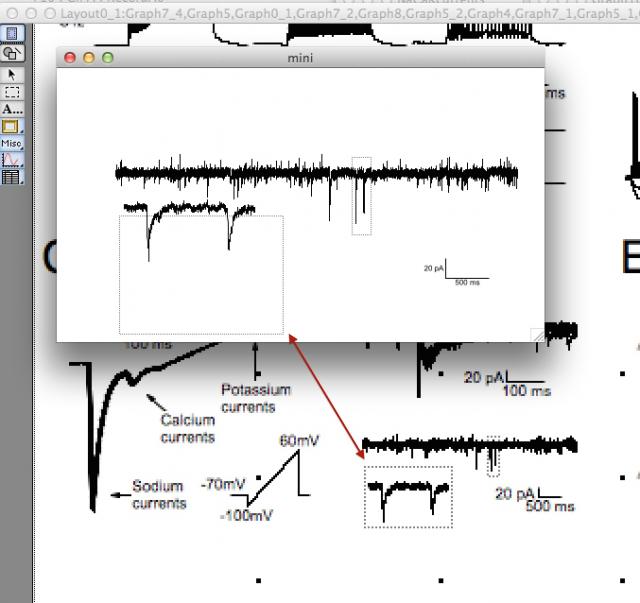

I plot a dotted rectangle in the graph. After I append the graph to the layout, the relative position of the rectangle changes.
Is this usual or I made it in a wrong way?

many thanks!
Use axis coordinates for your rectangle.

Execute this command to read the relevant help.


DisplayHelpTopic "Drawing Coordinate Systems"

--Jim Prouty
Software Engineer, WaveMetrics, Inc.

August 13, 2014 at 08:27 am - Permalink

JimProuty wrote:
Use axis coordinates for your rectangle.

Execute this command to read the relevant help.


DisplayHelpTopic "Drawing Coordinate Systems"

--Jim Prouty
Software Engineer, WaveMetrics, Inc.

Thank you Jim.

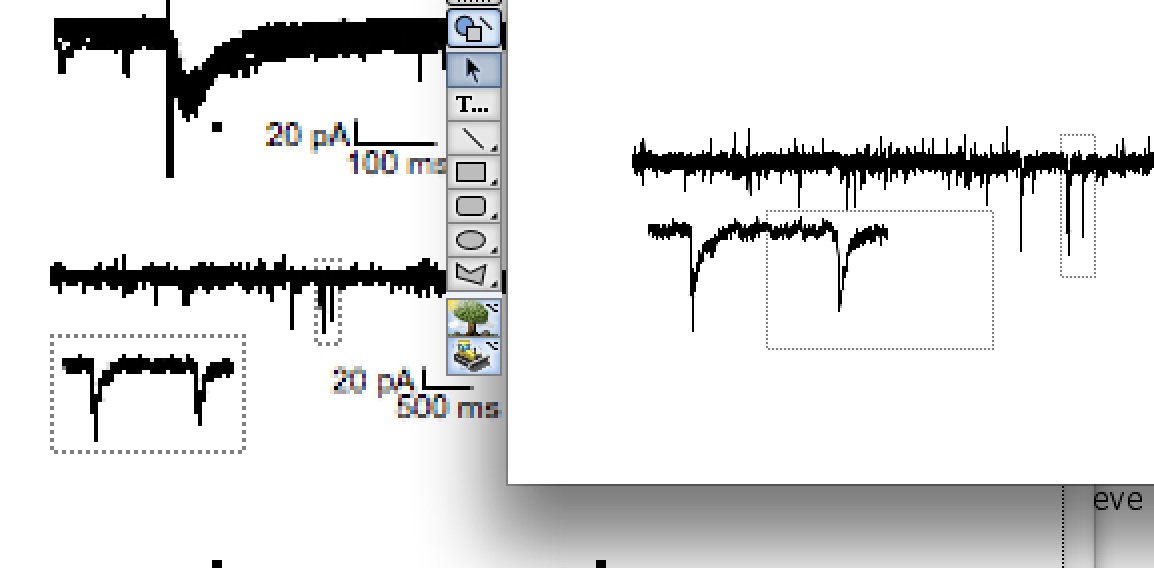

I change the dotted rectangle from relative to plot relative. And this is what I meet. still not work. Difference is I just need to modify the rectangle to another position.
1_4.jpg 1_4.jpg 1_4.jpg

August 15, 2014 at 01:19 am - Permalink

You need to plot relative to your axes. Y goes to the left axis and X goes to bottom axis. These will resize properly in the layout.

August 15, 2014 at 03:34 am - Permalink
