Stacked category plot with z wave

Share icon

Thu, 09/17/2009 - 09:34 am

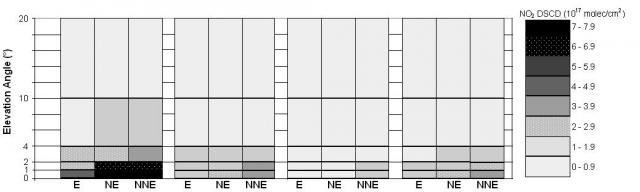

I am new to using Igor and am trying to create the attached graph. Unfortunately, I am having little success. Is there a way to do this without manually programming it as an image plot? In either scenario, how would I go about recreating this graph?
This can be done by combining 4 category plots in one graph (using multiple bottom axes, one per category plot).

The stacked bars can be done by using either Draw to Next Grouping (what I used) or Stack on Next, depending on what data you're starting with.

The coloring/shading can be done using color as f(z).

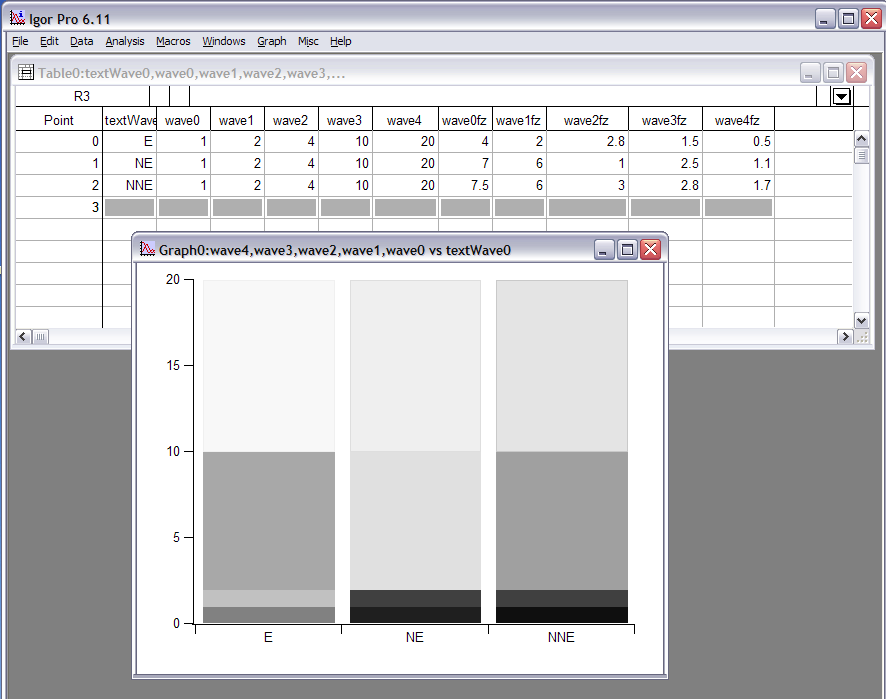

Here's the recreation macro of an example of only one of the four category plots:

Window Graph0() : Graph
    PauseUpdate; Silent 1       // building window...
    Display /W=(96,176.75,490.5,485) wave4,wave3,wave2,wave1,wave0 vs textWave0
    ModifyGraph rgb(wave3)=(65280,0,52224),rgb(wave2)=(0,12800,52224),rgb(wave1)=(0,52224,0)
    ModifyGraph hbFill(wave3)=2,hbFill(wave2)=2,hbFill(wave1)=2,hbFill(wave0)=2
    ModifyGraph toMode=1
    ModifyGraph zColor(wave4)={wave4fz,0,8,Grays,1},zColor(wave3)={wave2fz,0,8,Grays,1}
    ModifyGraph zColor(wave2)={wave2fz,0,8,Grays,1},zColor(wave1)={wave1fz,0,8,Grays,1}
    ModifyGraph zColor(wave0)={wave0fz,0,8,Grays,1}
    SetAxis/A/E=1 left
EndMacro


The fake data I used was this:
textWave0   wave0   wave1   wave2   wave3   wave4   wave0fz wave1fz wave2fz wave3fz wave4fz
E       1   2   4   10  20  4   2   2.8 1.5 0.5
NE      1   2   4   10  20  7   6   1   2.5 1.1
NNE     1   2   4   10  20  7.5 6   3   2.8 1.7


Note the trace order: I put the waves with the biggest values in the "back" by appending them to the graph before the waves with smaller values.

Software Engineer, WaveMetrics, Inc.

September 17, 2009 at 12:04 pm - Permalink
