Modify Graph Dialog - Possibility to set (or at least see) the total graph size

In the Modify Graph dialog it is possible to set the size of the graph. The problem is that there is no easy way to set the total graph size, i.e., the size of the graph area + margins. Lately, I tend to prepare figures for presentations and publications only within Igor (in the past I often took another brush-up step in an external graphics software). Of course, in both cases one ultimately wants a graph of this and this size in total. Currently, I use the Absolute mode and set the graph area and margins to add up to the correct size (hopefully, if I got all numbers right). Then, if I realize I want to change the margins a bit after all, I have to to the math again and change the graph area as well. If I would want to use the PerUnit mode such calculation is starting to get a real headache.

It would be really great if there was an option to set the total graph size as well, with which graph area and margins are automatically adjusted. Or, alternatively at least show the resulting total graph width and height in the selected unit (or even multiple units for convenience!) somewhere for confirmation, like in the attached mock-up.

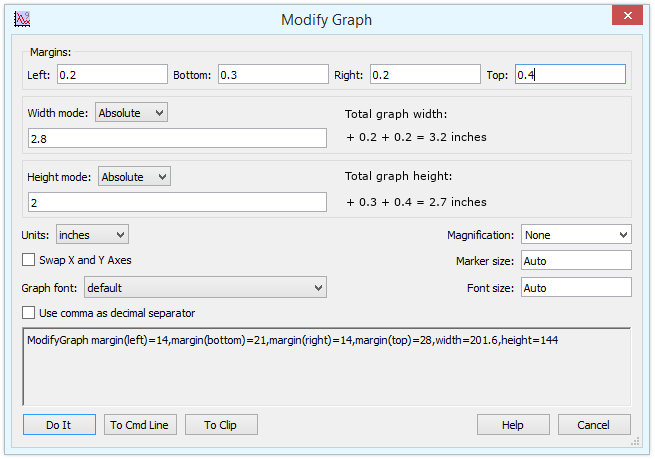

Modify Graph dialog mock-up

Heh. Dialogs are tough.

Your example there has all margins set; if any margin is 0 (auto) then it is really tough to display the total window size. I think the fact that you have implemented Auto and Absolute modes indicates some of the difficulties...

In fact, how did you implement the Auto mode? Actually, I guess that's easy- it's just the window size. So this is mostly useful for Absolute mode. But since we actually recommend using Absolute mode with the margins set, exactly for your use case, perhaps we need to think about this.

I think in the past the recommended solution was to put the graph into a layout, and layouts have some facilities for making graphs in uniform sizes and lining them up, etc. But your use case is for a journal-specified size that you need to apply to a single graph, so going to a layout adds an extra step.

I will think about this....

If you need to export a graph with a fixed size, you can use the File->Save Graphics dialog (or the SavePICT command) to export a graph of a specific size.

We could add some text in the dialog that does the math for you when you're using absolute mode and have fixed margins, but outside of that one situation I don't think it would be relevant. Would the addition of such information, but only in one specific situation, be more helpful than it would be confusing?

It might help us understand your motivations if you can give a more complete example of your use case/workflow.

Thank you for having it on your list. First, here are my use cases:

  • I want exact figures sizes for publications, since there is a size limit. I find it easier to work on graphs with the correct end size in mind from the start. It is a real hassle if you realize that the annotations or other additional elements will not fit just before submission at the target size or that some traces end up too close after all.
  • I want to put figures into presentations quickly. Here is the main concern that several graphs have the same size to line up properly. But it is neat if the graph just fits in after pasting without much rescaling (with the added bonus that I get intended font size), too.

Yes, I know you can work with layouts, which however is an extra step and not as straight-forward as it could be (you have to first get the layout size right, then delete the frames around graphs etc.). Why wrap the graph in another layer? Also, I know you can export graphs with a fixed target size, but this is not WYSIWYG at all, since ticks, fonts, annotation positions etc. will change accordingly. Then, I usually don't export graphs anymore but instead just copy-paste them directly between applications.

Regardless of these use cases, I think what is missing now is an always ready indication of the current total graph size (i.e., what you get from GetWindow gsize, but without the fractional 'offsets'?). I imagine an info window somewhere or even a small tool-tip popping up when moving the cursor to the edges of the graph with the total x/y size indicated in all three units. This would be especially useful for other modes like perUnit for example (here I really need to get out the calculator). It would be OK to have the number stated always inside the Modify Graph dialog, but having it visible even when 'free-scaling' a graph would be much more convenient. Maybe showing these number in the info bar on the fly here?

Currently, I see three problems:

  • You have no idea whatsoever how big the graph is (in therms of print size or when pasting somewhere) when in free scaling mode. Even inside the Modify Graph dialogue you do not get numbers anywhere. I often see colleagues scale the graph so that everything is easily visible, which makes them way way too big (especially when working with high resolution screens). I know to circumvent this somewhat by almost always working with expand=2 when I know I want to export this graph somewhere. Also, this makes for a fun guessing game if you want to fix the margins after all: You need to dial in a number, but without the current size (how many points is the current automatic margin?) you dial something in, realize it is quite off from what you want => repeat in several steps.
  • I think most people do not realize fully what you are actually setting in the Modify Graph dialog. I mean, the wording and everything makes it seem you are editing the total graph size here, when instead you are just setting the plot area. It took me quite a while to realize this, too. Even then, with the margins set to auto you have no chance to aim for a fixed total size. I imagine many users just don't care (or stopped caring) and just scale it after the fact (which however screws up the font size). I see my colleagues do exactly that.
  • It is surprisingly difficult to get graphs to the same size. One method I use is to put the graphs on top of each other and try my best to scale them pixel-perfect onto of each other. Another way is to fix the graph size and then use the same commands to apply to other graphs. This gets a bit cumbersome when said commands are scattered in the history, or have piled up from testing the correct size. But what to do when the graph is already fixed? There is no copy function and you do not get the commands unless you change something. Also there can ever be only one dialog open so you cannot even copy them manually by looking.

My panel from the code snippet solves all these issues for me. I but I would be happy if there is an official solution.

Is the issue here the same as the variations that seem to happen in margin offsets depending on the number of significant digits in a label value? For example, all else exactly the same, the "bounding box frame" for a graph with an ordinate that goes from 0 to 1 will be slightly wider than the same frame for an ordinate that goes from 0 to 100?

> There is no copy function and you do not get the commands unless you change something.

I think you hit the key here. Make one graph to the definitions. What you want is a copy + paste command for the graph scales.

But isn't this what the style macro is supposed to handle? Or does the style macro not handle this?

I *think* that I see the problem. I believe that I also have this concern, and I would also like to know whether I really understand the best way to fix it.

Jeffrey, thanks for the reply. The variation of the margin depending on the number of digits is another small 'issue' on top of above points. This is exactly the scenario where you want to control both the plot area (to make the axes of two graphs equally long) and the total graph size (with different margins to keep the overall format). By the way, in Auto mode the margins change dynamically depending on the size of the font (which usually changes dynamically with the graph size), whether there are ticks/labels and, as you already wrote, with the number of displayed digits.

And no, unfortunately style macros are not a good solution here. You could create a style macro and then copy just the commands for the graph size and the margins etc. I doubt the average user knows the correct ones or even find the code for style macros in the procedure window. Maybe the introduction of an additional 'Size Macro' would help, where just the settings of the Modify Graph dialog are transferred to the graph macro. Yes, I also realize that the average user might not care too much about correct graph sizes or instead take the extra step via a graphics software rather than doing things in Igor. But this is something I think should be changed.

Imagine my happiness when, for example, I have to change the underlying data somehow and the graph updates with everything already in place in a perfectly publication ready graph! Just copy-paste or export again - done! I while I do the effort to make that happen, I often just get an experiment file with the bare skeleton of a graph from my colleagues, with the note that 'the rest is done in power point/illustrator/inkscape/photoshop' - argh.

Did you have a look at my code snippet? I think having something like this (and extended to the perUnit, Plan, Aspect modes) in the Modify Graph dialog would solve these points. Of course, compared to the snippet the complexity should be toned down, and proper labels on everything wound not hurt either. ;)

I think anything along these lines would have to apply only to fixed margins. As noted, with Auto margins, the margins dynamically respond to a number of changes. We have always said that if you must have a fixed size, you need to set both Absolute mode and fix the margins. I agree that can be less than straightforward presently.

Extending this to all those obscure sizing modes might be problematic as well, since they are also dynamic. Only Absolute mode keeps the window size fixed. Well, as I think about it, I can see that other modes could come in- like using Aspect mode on the Height combined with Absolute mode in width. This starts to sound like a Difficult Problem in the complexity of interactions...

John, thanks for your response. I think at least half of the problem is that there are no tangible numbers in Auto mode at all, and no indication of the total size any mode. So even if it would be difficult to implement setting the total size directly (that would probably require fixed margins as you write), we really need imho:

  • clear indication via wording, or even better with a small visual cue, what is really meant by the width / height setting
  • a visible display in numbers of the total & plot area sizes as well as margins regardless of mode (preferably in all three units at the same time)
  • an easy way to transfer only these settings to another graph

If these things are there I would be happy without the ability to set the total size directly (Ok, I have my own panel for this anyway now). ;)
