Making a donut plot in IGOR

Hi,

I want to create a 2D-donut plot with multiple layers. Please see the attached image. I couldn't find a way to do this in IGOR. Kindly help. Thanks a ton!

Sincerely,

Peeyush



The donut plot I want to make in IGOR

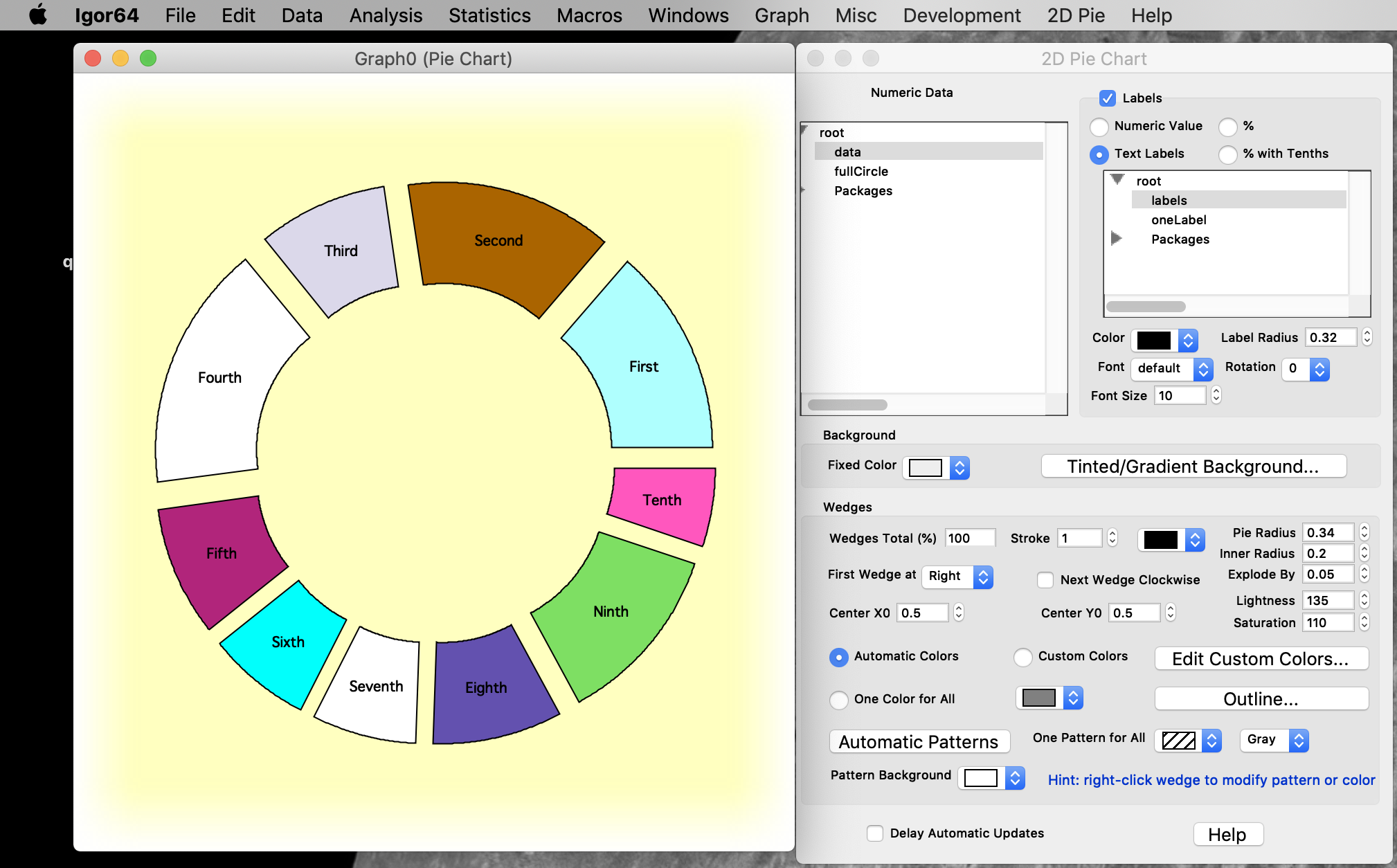

This looks like three pie charts stacked up? The outer ring in back, then the inner ring, finally the circle in the middle? Possibly you could use Igor's pie chart package (Windows->New->Packages->2D Pie Chart) to make the individual pie charts, then composite them in a page layout.

You may also want to check out File Menu->Example Experiments->Visualization->wedges for a 3D version.
