SpAcAn: Spontaneous Activity Analysis

SpAcAn (Spontaneous Activity Analysis) is a collection if IGOR Pro functions for the detection and analysis of spontaneously occuring (non-triggered) events in electrophysiological recordings. SpAcAn was originally designed to facilitate the analysis of spontaneous synaptic activity in whole-cell recordings, but has also been used successfully to detect and analyze spikes or rapid changes in fluorescence.

Images:

Project Details

Project Changelog: View Changelog
Project Documentation: View Documentation
Project Homepage: View Homepage

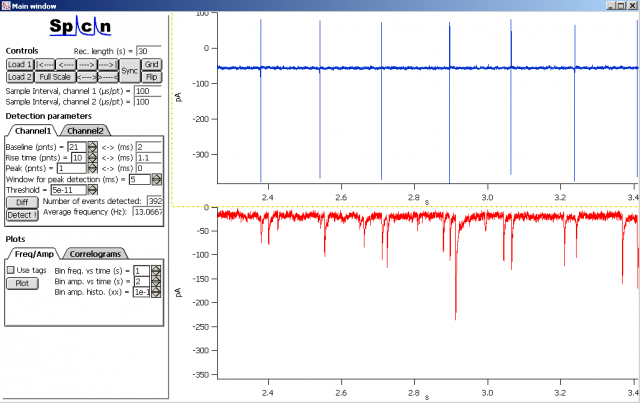

Project Screenshots: http://www.spacan.net/index.php?option=com_content&view=article&id=9&Itemid=11
Project Demo: View Demo

Current Project Release

SpAcAn: Spontaneous Activity Analysis IGOR.5.05.x-1.06

Release File: SpAcAn-1.06.zip (108.96 KB)
Version: IGOR.5.05.x-1.06
Version Date:
Version Major: 1
Version Patch Level: 6
OS Compatibility: Windows
Release Notes: This version fixes the following bug: the calculation of the 20-80% rise time was failing when the event rise time was one point only (which happens for example when detecting recorded trigger signals such as TTLs).
Now a separate calculation of RT20 and RT80 is performed when a one point transition accounts for more than 99% of the event amplitude.
View All Releases
