Trace marker size from wave
Fri, 03/02/2012 - 06:31 am
In the attached graph there is a data wave plotted (on top of an image) as markers only. The color and size of the markers are set by selecting the same data wave in the customize marker dialog ("set as f(z)"). The min and max of the z-range (for both marker size and color) are set to less than the full range of values in the data wave. Marker color behaves as I expected, all points of the wave with values greater than the max setting for the z-range appear to be the same color. However, marker size does not seem to follow this same behavior. I exected that all points with values greater than the max setting would be the same size. Based on the coloring of the markers this is not the case.
Have I misunderstood the intended funtion of the marker size or have I set something incorrectly? Or... something else?

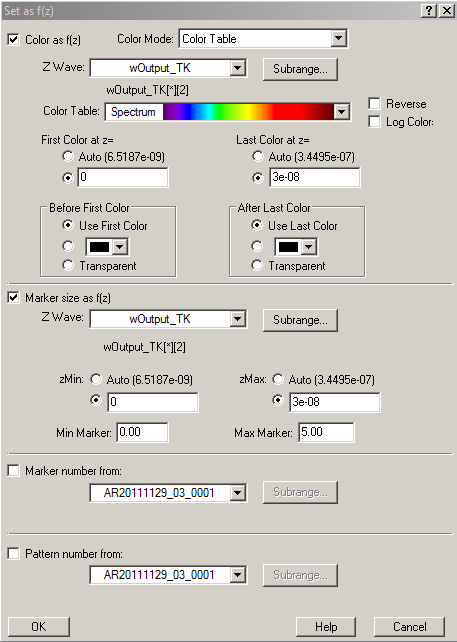

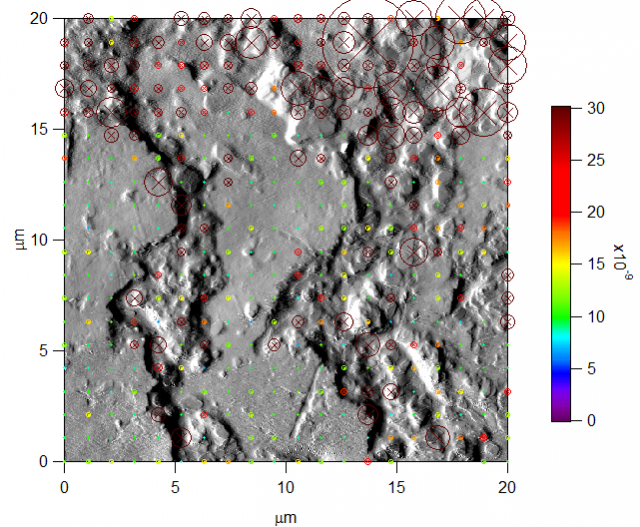

I have attached an image of the graph and the "set as f(z)" dialog showing the settings for the data wave markers.
