Splitting data : Diurnal plot (as box plot)

Share icon

Thu, 08/29/2019 - 07:21 am

Hello, I received a fragment of code from "hegedus" ("Mon, 08/26/2019 - 10:39 pm") to split data into several bins.

The piece of original code was to separate data over Bins from 0 to 0.1.

Original code

function SplitData(Xin,Yin)
    wave Xin,Yin

    variable index
    For(index=0;index<1;index+=.1)
        Extract /O Yin, $("G"+num2str((index)*10)), Xin>index && Xin<(Index+0.1)
    endfor
end

I would like to modify this code for a diurnal plot. My Xin wave is now a datawave containing numbers 0 through to 23 (for hours) and my Yin wave is the data that I would like to average over Xin (both waves are of the same length) .

The modified code is

function SplitData(Xin,Yin)

    wave Xin,Yin

    Make/o/N=23/T GroupLabel
    groupLabel = num2str(x/1)

    variable index
    For(index=0;index<23;index+=1)
        Extract /O Yin, $("B"+num2str((index)*1)), Xin>index && Xin<(Index+1)
    endfor
end

However, this code creates 23 waves B0....to B23, but is not extracting the Yin data into these waves.

I am having trouble seeing my error.

If you can help I would appreciate it.

Thanks







Can you share the data?  I would double check the Xin data and type.



Andy

August 29, 2019 at 08:14 am - Permalink

Hi,

Tweaked it a bit.

GroupLabel should be 24 points (0-23) and no need for the division by 1.

Second since you have the hours already defined in the Xin you can use a simple test for equality.

Third I removed the *1 in the wave name portion.  I had used *10 before to create wave names but the decimal needed to be removed for the name.

function SplitData(Xin,Yin)

    wave Xin,Yin

    Make/o/N=24/T GroupLabel
    groupLabel = num2str(x)

    variable index
    For(index=0;index<24;index+=1)
        Extract /O Yin, $("B"+num2str(index)), Xin==index
    endfor
end

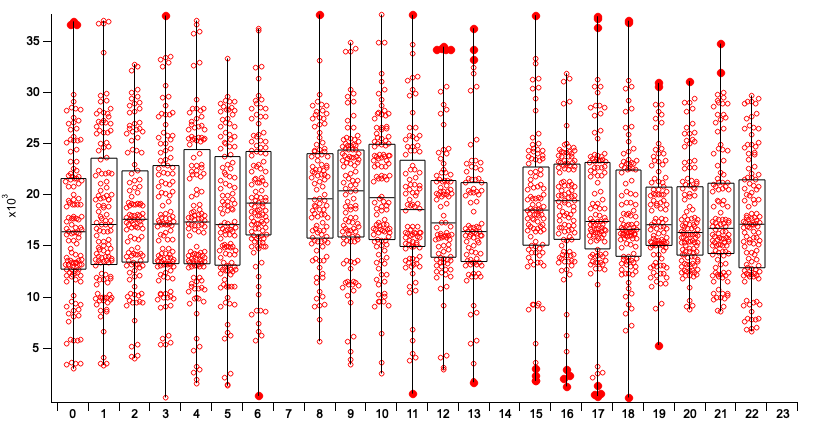

The box plot is shown as created by IP8.

Andy
Box Plot Diurnal.png

August 29, 2019 at 09:28 am - Permalink

Hello again Andy,

Thank you very much. This worked nicely, and I managed to make the box plot with the data points included using IP6!! It just took a bit more time :)

August 30, 2019 at 09:43 am - Permalink
