iSpectra: A Toolbox for the Analysis of Spectral Images recorded on SEM-EDS systems

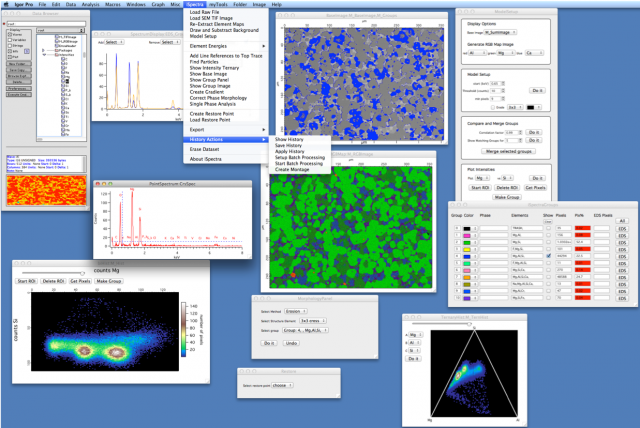

iSpectra is an open toolbox for the analysis of spectral images (SI's) recorded on scanning electron microscopes (SEM's), equipped with energy dispersive spectroscopy (EDS) systems for chemical analysis. iSpectra provides various tools for visualising chemical variability within a SI but is primarily written to create true phase maps, rather than more commonly used elemental x-ray distribution maps. iSpectra imports SI's in Lispix format and exports cumulative phase spectra in industry standard EMSA format along with graphical output. iSpectra allows to apply a variety of IGOR's built-in image processing algorithms to groups of pixels with similar spectral content for optimising pixel-to-phase assignments.

The package contains sample data and a comprehensive manual. For more information on the package content see the READ ME file.

A manuscript, describing iSpectra and showing potential applications has been published: C. Liebske (2015), iSpectra: an open source toolbox for the analysis of spectral images recorded on scanning electron microscopes. Microscopy and Microanalysis, vol. 21, p. 1006 - 1016

Please cite this paper when using output created with this package in articles or presentations.

Project Details

Current Project Release

iSpectra: A Toolbox for the Analysis of Spectral Images recorded on SEM-EDS systems IGOR.6.30.x-2.01

Release File: iSpectra V2.01.zip
Version: IGOR.6.30.x-2.01
Version Date: Fri, 09/25/2015 - 02:50 am
Version Major: 2
Version Patch Level: 1
OS Compatibility: Mac-Intel Windows
Release Notes: Changes compared to 2.0:

- various bug fixes
- completely re-designed batch processing interface
- integrated EMSA header constants making an "ExtractedSpectrum.emsa" obsolete
- option to easily integrate user-defined output in batch processing
